標準裝置 Standard Accessories |
|
電動黃油潤滑裝置 Electrical drive lubrication system |
|
液壓過載保護裝置 Hydraulic over-load protector |
|
手動式滑塊調整裝置 Manual slide adjust device |
|
主電機 Main motor |
|
變頻器Transducer |
|
機械式曲軸角度指示器 Crank angle counter |
|
機械式模高指示器 Die height indicator |
|
滑塊及模具平衡裝置 Balance device |
|
凸輪控制器或旋轉編碼器 Cam controller or rotary encoder |
|
模具照明燈 Working light 二度落保護裝置 Against over-run safety device 觸摸屏系統(tǒng) Touch screen 可編程控器系統(tǒng) PLC 固定雙手按鈕操作站 Two-handed operation station |
|
誤送檢知接口 Mis-feeder check-out port |
|
空氣源接頭 Compressed air connector |
|
空氣吹料接頭 Set blowing connector |
|
主電機逆轉裝置 Main motor reversing device |
|
組合式干式摩擦離合器 Combined dry friction clutch |
|
防震墊腳 Adjusting shockproof pad |
|
選擇配置 Optional Accessories |
|
可移動雙手操作按鈕站 Mobile two-handed operation station |
|
腳踏開關 Foot switch |
|
剛性上打料裝置 Downward rigid ejector |
|
光電安全保護裝置 Raster protector |
|
氣墊 Air cushion |
|
噸位顯示儀 Tonnage indicator |
|
組合式濕式離合器 Combined wet lunch |
|
快速換模裝置 Quick mold change device |
|
自動化外圍設備 Automatic supporting equipment
|

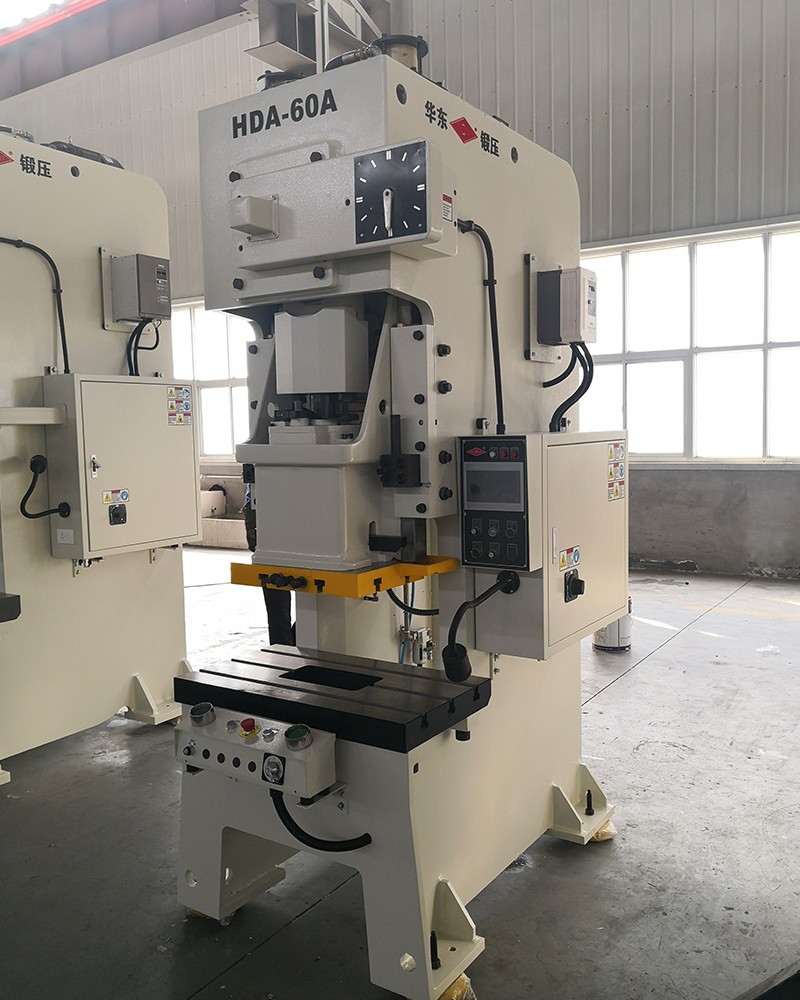

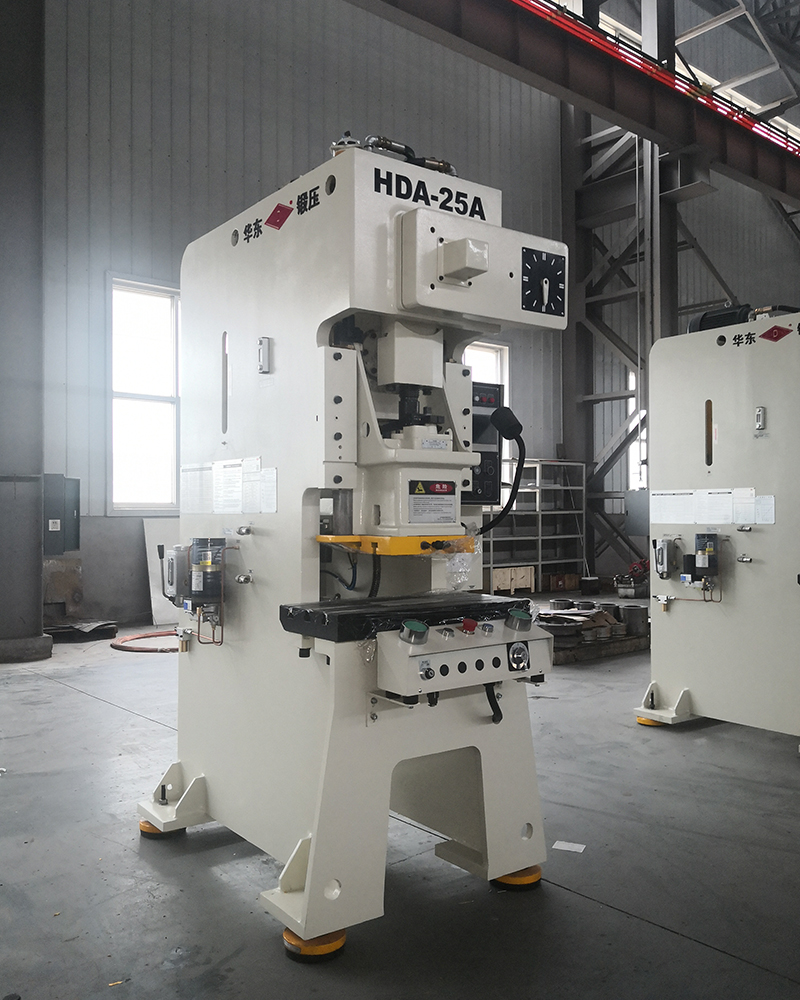

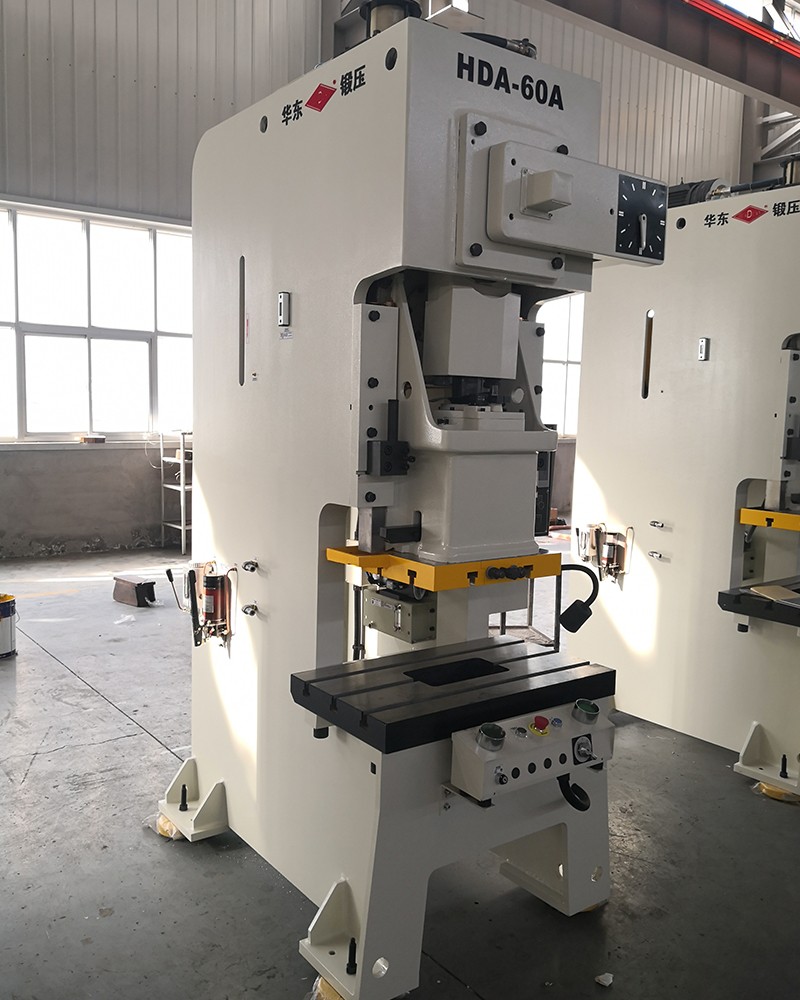

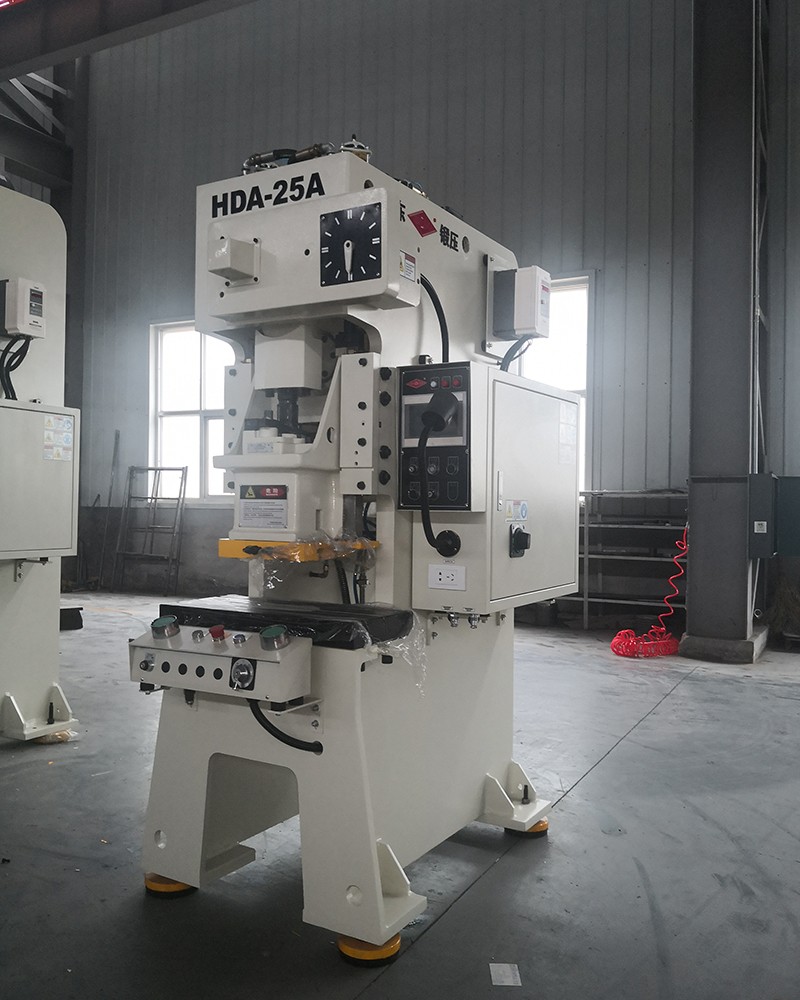

| 規(guī)格 Specification | HDA-25A | HDA-35A | HDA-45A | HDA-60A |
| T型槽 | Ⅰ | Ⅰ | Ⅰ | Ⅱ |
| A×B | 240×120 | 280×140 | 300×150 | 320×160 |
| C×D | 680×300 | 800×400 | 850×440 | 900×500 |
| E | 90 | 120 | 120 | 150 |
| F | — | — | — | 110 |
| G | 40 | 50 | 60 | 80 |
| 模柄孔徑 | φ38 | φ38 | φ38 | φ50 |
| 標準(L×M) | 300×230 | 360×250 | 400×300 | 500×360 |
| 飽滿(L×M) | 470×230 | 520×250 | 560×300 | 700×360 |
